Welcome to 50+ Years of Reliability

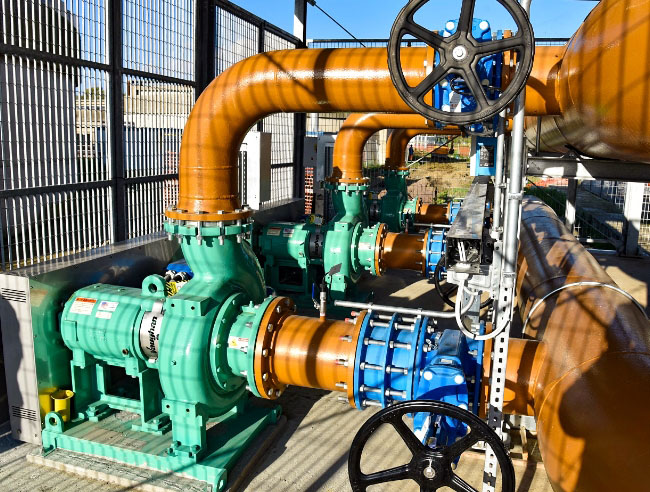

The Vaughan Chopper Pump is a centrifugal pump with the unique ability of chopping all incoming solids prior to pumping. This not only protects the pump from clogging, but also provides added benefit to downstream components, processes, and the environment.

All wear components are cast steel and heat treated for maximum impact and wear resistance. Combined together, these heavy duty patented components create the ultimate pump for handling severe solids.

This same basic concept has been used in Vaughan's vertical wet well design for almost a half-century.

Chopping is accomplished by the scissor action of the leading edges of the impeller vanes cutting against the opposing edges of the cutter bar.

All solids are chopped as they enter between the cutter bar and the impeller vanes. The smaller solids are easily pumped by the centrifugal action of the impeller.

Chopper Pump Features

  • Dry suction lifts up to 22 feet
  • Flows over 13,000 gallons per minute
  • Hydraulic efficiencies OVER 70%
  • Discharge sizes from 3" to 16"
  • Heat-treated and hardened components
  • Direct or belt-drive configurations available
  • Over 50 years experience
  • Non-clogging guarantee on all Chopper pumps




2014 Chopper Pump Brochure


End of Section




End of Section


With over 30,000 units in service, the Vaughan Chopper Pump has not only proven it's value in problem solving, but also established itself as the reliable alternative to conventional pumping. Over the years, product reliability has also allowed Vaughan to guarantee the NON-CLOG performance of all chopper pumps. This guarantee is your written assurance of clog-free solids-handling performance, above-and-beyond the standard materials-and-workmanship warranty.

Below is a sample guarantee so you can see how simple and direct Vaughan's guarantee reads — no "catch phrases" or vague requirements.

Terms & Conditions

Customer agrees to store and install the pump according to Vaughan recommendations (ref: O&M manual). Start up must not exceed 6 months after receipt at job site. All associated devices shall be installed and fully functional for pump protection.

Customer agrees to fill out and return the start-up certification sheet located in the O&M manual, and to notify Vaughan or the local factory representative of any problems encountered within 24 hours of the occurrence. Vaughan reserves the right to make any corrective changes to the pump during the guarantee period. If the above terms are met, and pump failure still occurs, then Vaughan shall be obligated to accept return of the pump, freight prepaid, and refund the purchase price of the pump.

This guarantee does not replace Vaughan's standard one-year materials and workmanship warranty. The purchase of the pump must be in strict accordance with the details of the quotation, including the terms of payment.

Vaughan is not responsible for the effects of abrasion and corrosion. Materials of construction are to be specified by the customer. Customer agrees to perform routine maintenance and repair, per the guidelines of the O&M manual.

Vaughan is not responsible for the determination of head or flow requirements. Pump must be applied within the efficiency boundaries of the pump performance curves, unless approved by Vaughan.


End of Section


Not Your "Single-Use" Chopper Pump

From food processing to silt ponds, the Vaughan Chopper Pump can handle it.

Paper and Wood Products

  • Broke Pits
  • Carbonized Bark
  • Chip Conveyors
  • Clarifier Scum
  • Coal Pile Runoff
  • Conveyor Gallery Sumps
  • Drainage Sumps
  • Fly Ash
  • Knot and Bark Handling
  • Log Soaking Vats
  • Lime Sludge Transfer
  • Underflow to Dewatering
  • Woodyard Sumps

Mining / Sand & Gravel

  • Acid Mine Water
  • Coal and Sand Washing
  • Concrete Batch Plant Sumps
  • Sand and Gravel Silt Ponds
  • Truck Washdown Sumps

Automotive / Steel

  • Boiler Blowdown
  • Chrome Plating Slurries
  • Coke Breeze
  • Coke Tar Decanter Sludge
  • Glass and Plastic
  • Iron Ore Pellets
  • Metal, Machine Chips
  • Mill Scale
  • Oil Washdown
  • Paint Overspray Sludge
  • Roll Grinder Coolant (Swarf)

Food Processing

  • Blood
  • Carrots
  • Chickens
  • Corn Husks
  • Ears, Hair, Hooves, Horns
  • Fat
  • Feathers
  • Fish
  • Fleshings
  • Hide Pieces
  • Potatoes
  • Turkeys
  • Tomatoes

Contractor Services

  • Hazardous Waste Cleanup
  • Lagoon Cleaning
  • Recycled Solvents
  • Sludge Dewatering
  • Storage Tank Cleanout

Chemical / Petrochemical

  • API Separators
  • Coke Slurries
  • Detergent Cakes
  • Latex Skins
  • Lead Oxide Slurries
  • Oil Waste
  • Plastics
  • Pumice Hand Cleaner
  • Refinery Mud
  • Storm Drains
  • Sulfur Froth

Wastewater Applications

RAW SEWAGE: Lift stations, CSO facilities, headworks, prisons, hospitals, restaurants.

SCREENINGS / SEPTAGE: Raw concentrated solids including rags, plastics and hair.

CLARIFIER SCUM PITS: Primary or Secondary scum without plugging or air binding.

SLUDGE TRANSFER: Eliminates "roping" and clogging in clarifier underflow to thickeners.

RAS / WAS: Continuously conditions Return and Waste Activated Sludges.

THICKENED SLUDGE / DIGESTED SLUDGE TRANSFER: Handles high sludge consistencies.

DIGESTER MIXING: Rotamix system conditions and mixes in a dual-zone rotational flow pattern.

DIGESTER RECIRCULATION: Eliminates heat exchanger clogging while conditioning sludge.


End of Section

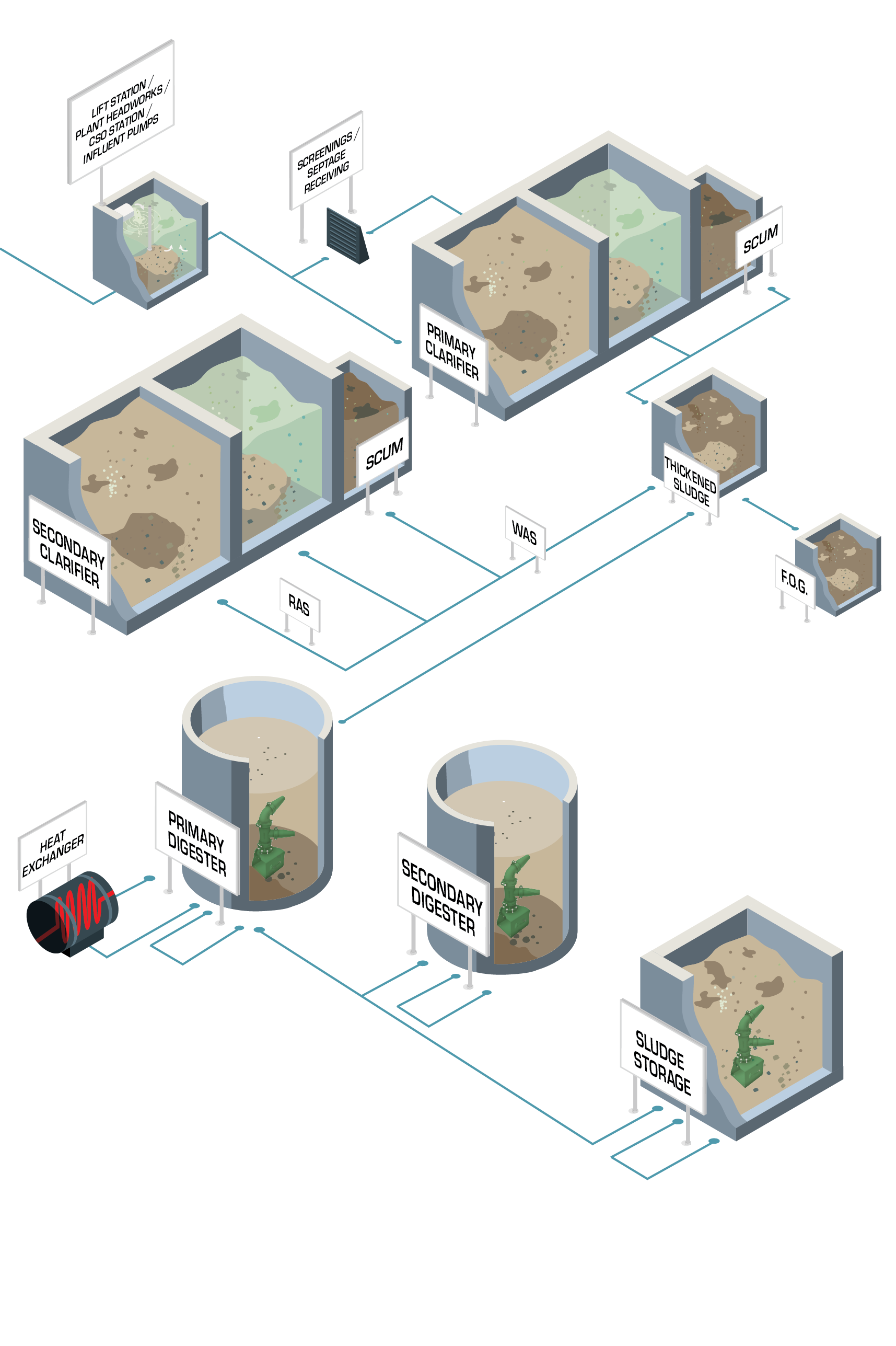

Typical Municipal Flow Diagram

Contact us today to help diagram your specific project needs

Vaughan Chopper Pump - Flow Diagram


End of Section

Chopper Pump Configurations

A number of different options for your project. Contact us today to help identify your specific pump needs


Outline Self Primer

Product Information

  • Self-priming up to 25'
  • Heavy duty cartridge design assures dependability
  • 4" - 10" discharge available
  • Available in direct or belt drive

Wet Well

Outline Wet Well

Vertical Wet Well

  • Vaughan's most popular sump pump.
  • Reliable mechanical seal/oil bath design.
  • Eliminates suction piping.
  • Keeps motor and wiring out of the pit.

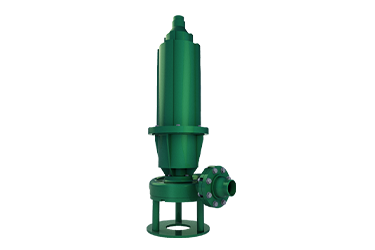

Electric Submersible S-Series

  • Adaptable to most guide rail systems.
  • Explosion-proof motor.
  • Available with rail system or portable.

Electric Submersible E-Series

  • Popular for sewage lift stations.
  • Retrofits to most guide rail systems.
  • Ideal for deep sumps.
  • Available with rail system or portable.

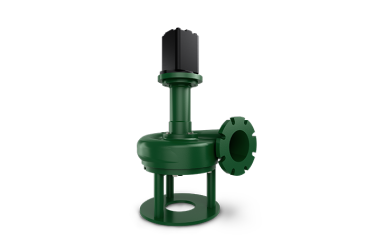

Hydraulic Submersible

  • Portable pump for tank cleaning.
  • Lighter weight than other submersibles.
  • Ideal for mobile equipment.

Dry Well

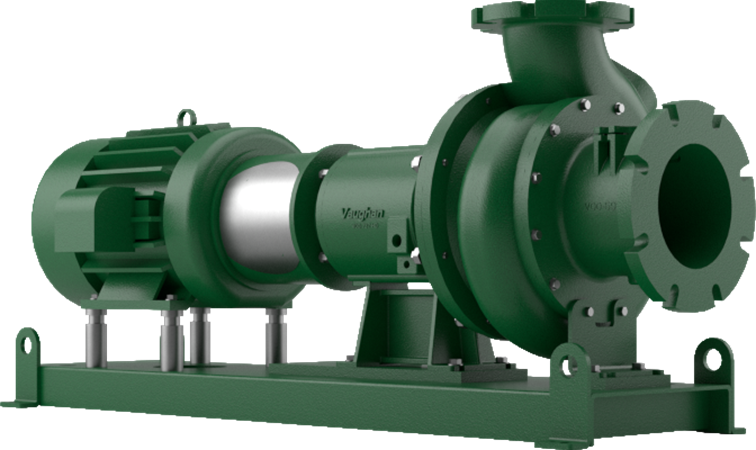

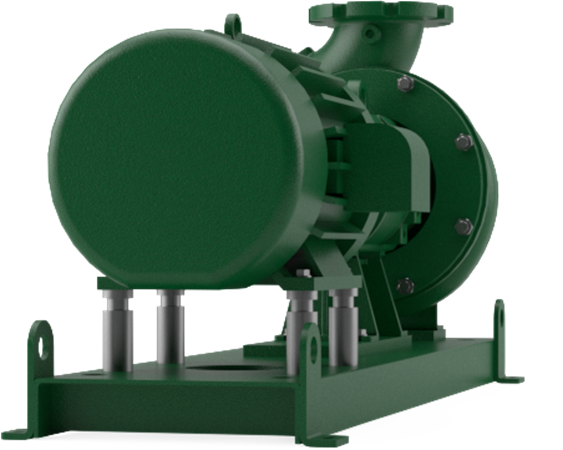

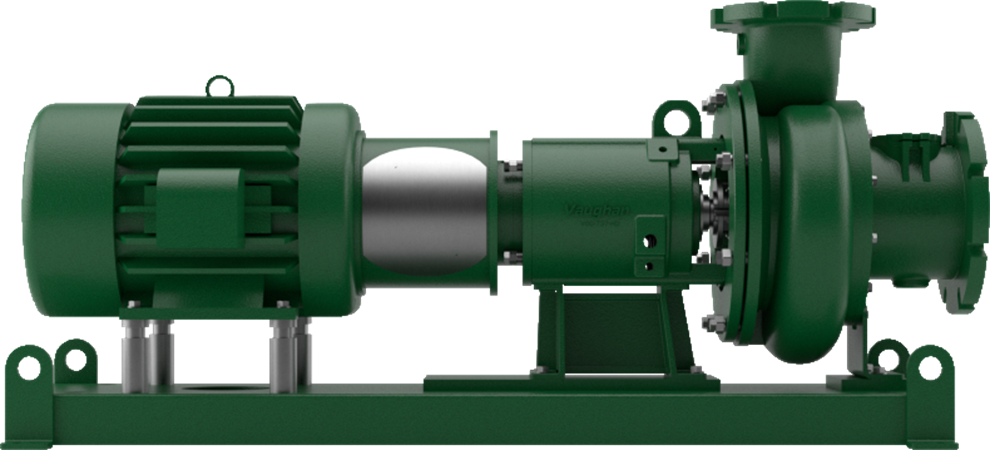

Horizontal Dry Well

  • Various sealing systems available.
  • Direct or belt drive.
  • Adjustable back pull-out design.

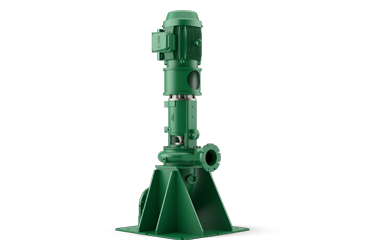

Pedestal Dry Well

  • Used primarily in dry well applications where floor space is limited.
  • Various sealing systems available.
  • Adjustable back pull-out design.

Specialty Recirculators

Vertical Recirculator

  • Allows Wet Well and Submersible Pumps to be used for mixing and pump out.
  • Ideal for mixing of floating or settled solids.

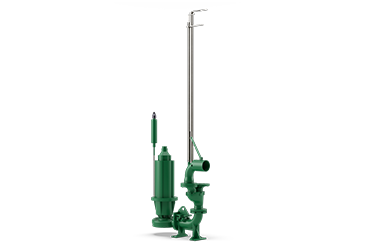

Submersible Recirculator

  • Adjustable back pull-out design.
