SPECIALTY PRODUCTS

Unique Product Solutions To Support Your Pump Needs

Chopper Pump

Vaughan Portable Bypass Trailer

Sound Attenuated 4" Bypass Trailer

The Vaughan Company now offers a series of portable pump package options that include our Dry Prime Horizontal End Suction Chopper Pumps in 3"-16" models, our Wet Prime Horizontal End-Suction Triton Screw Pumps in 3" to 12" models and our Wet Prime Self Priming Chopper Pumps in 4"-10" models. We have partnered with Premier Pump and Power to supply our pumps on a trailer or skid mounted platform powered by either a diesel engine or an electric drive. Another high quality offering from the brand you trust.



End of Section

Foambuster

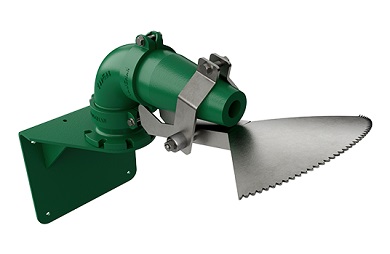

The patented Foambuster uses the same glass-lined ductile iron nozzles as Rotamix but also uses a stainless steel splashplate located below the nozzle to deflect the nozzle discharge and create a broad spray of sludge, which wets and breaks up foam forming on the surface of the digester. Digester sludge is pumped through the Foambuster either by the Rotamix Chopper Pump or by a separate Chopper Pump. When the Foambuster is used in conjunction with a tank mixing system, which produces a rotational mixing pattern in the tank, only one spray nozzle will be required for effective foam control.

Foambuster

The Foambuster nozzle, mounted above liquid level, may be mounted near the tank periphery and aimed radially inward towards the tank center. Alternatively, the spray nozzle/deflector may be mounted at or near the tank center and aimed radially outward at the tank outer wall. As the tank contents rotate beneath the spray nozzle, any foam present will be suppressed by the evenly dispersed spray pattern from the Foambuster. When used without a Rotamix mixing system, multiple Foambusters may be evenly distributed around the roof or on the walls of the tank to provide surface foam suppression. The size of the spray pattern will be controlled by the velocity of the fluid flow from the nozzle, and one style spray deflector will be suitable for all flow rates.



End of Section

Floor Washer System

The patent pending Floor Washer System is the Foambuster nozzle/deflector as described above, but with the deflector rotated from below the nozzle to above the nozzle. The inverted splashplate spreads nozzle flow out across a floor in a fairly wide path to wash settled grit, sand or debris into a sump where it can be pumped out by a dewatering chopper pump. The Floor Washer System is particularly useful for attacking deposition problems in Combined Sewer Overflow (CSO) tanks, storm collection tanks, equalization tanks, lift stations, and influent channels.

Foambuster



End of Section

Pregrinder Fish Kit

Pregrinder Fish Kit

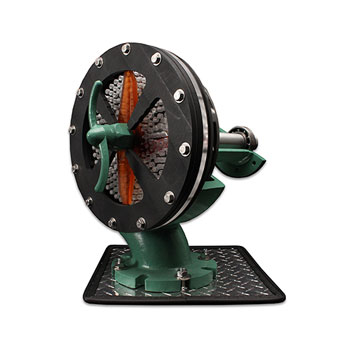

The Pregrinder Fish Kit was developed for the fishing industry to assure that discharged fish particles are no larger than ½". This Pregrinder Kit is an assembly of plates and cutters added to the pump suction of specific model pumps (4800, V4T, V6U, HE6U, HE6X, HE4T). Pump performance is affected by the pregrinder addition and requires increased horse power.



End of Section

Small Tank Mixing

Small tank mixing is a lower cost, simplified Rotamix system, using a Chopper Pump and external-mount nozzle assemblies. The external-mount nozzles are sandwiched between 6" ANSI flanges and provide fixed discharge angles off the tank wall. The nozzles can be made of light-weight 316SS or SCH40 steel with glass lining. These systems are ideal for FOG mixing (fats, oils, & grease) or for small food waste tanks which often use light weight fiberglass tanks.

The nozzles in this system also can be manipulated to create low or high turbulent conditions that are ideal for mixing additives or separating solids in the chemical processing and oil and gas industries.



Small Tank Mixing Simulation Pt. 1




Small Tank Mixing Simulation Pt. 2



End of Section

Vaughan Model 240

The model 240 Chopper Pump is Vaughan’s lowest cost, small horse power option. It is compact for small pits but can still handle the typical debris in lift stations, which cause problems for all but Vaughan Chopper Pumps.



End of Section

Hopper Chopper

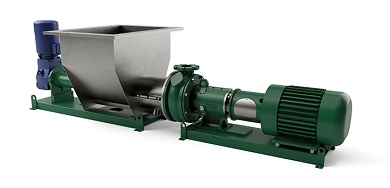

The Hopper Chopper is a combination of a stainless steel Chopper Pump connected to an SS hopper with a 7.5 HP SS auger system. The auger is designed to push whole tomatoes into the chopper pump where the tomatoes are chopped and slurried and pumped into a hot-break vessel. The Hopper Chopper eliminates to use of more expensive, higher maintenance equipment in tomato processing Hopper Chopper units with varying pump models and power have a reliable history of pumping 10-100 tons/hr of tomatoes to hot-break vessels. Almost all tomato pastes produced in California processing plants have been through a Vaughan SS Hopper Chopper.



End of Section

Vortex Chopper

Turbo Mixer

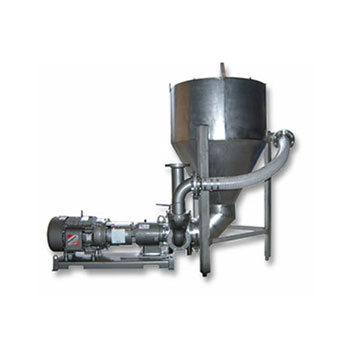

The Vortex Chopper is a combination of a cylindrical receiving vessel with a conical bottom connected through a large, 12” elbow to the suction of a Vaughan Chopper Pump. The pump discharges through Vaughan’s 3-way valve back to the receiving vessel for mixing and particle size reduction. Once the material in the receiving vessel has been thoroughly mixed, an operator can change the 3-way valve position to pump the slurry out to some other destination.

The Vortex Chopper has been used for fish processing for fertilizer, chicken processing for protein recovery, food waste slurrying for bio-fuels systems, and waste processing and recycling for rejected TV dinners. The mixing system creates a vortex in the receiving vessel to draw any floating material down into the pump to assure a homogeneous slurry. The tank, pump and valve can be either steel/ductile iron or stainless steel depending on the application.



End of Section

Turbo Mixer

Turbo Mixer

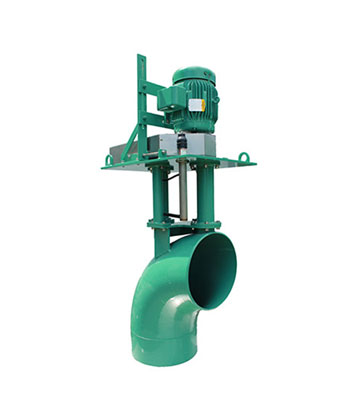

Vaughan’s Turbo Mixer is a propeller mixer mounted vertically inside an 18” elbow. This mixer has replaced many submersible propeller mixers which have experienced motor or gearbox failure due to fluid inleakage. The Turbo can mix a pit with only one foot of liquid above the floor, something a horizontal shaft submersible mixer cannot do.

The Turbo also incorporates Vaughan’s upper cutter above the propeller to stop wrapping and fibrous material binding and to protect the mechanical seal. The Turbo has been used extensively in dairy manure mixing but also in municipal treatment plant anoxic zone mixing and in oxidation ditches. An optional add-on turntable can allow the Turbo to be easily re-aimed in the pit.



End of Section

Floating Prop Mixer

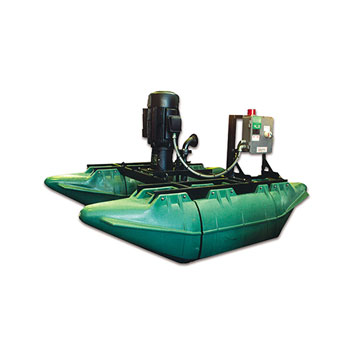

Vaughan’s Floating Prop Mixer is a floating platform with an 8.5 ft long open propeller mixer mounted on it. The propeller mixer is mounted on the platform with a swivel mounting so that it can be rotated up for transporting or rotated down into the fluid for mixing. Pregrinder Fish KitIt has been used for mixing lagoons or open topped tanks when crusts develop. Units typically use 10-20 HP motors.





Unmanned Floating Pumping Platform

Vaughan’s Unmanned Floating Pumping Platform uses a simple float designed to support only a short, 2-ft long chopper pump. A floating discharge hose can be attached to this pump to allow lagoon, tank, or pit pumpout. A variety of pumps and motors can be mounted on several sizes of floating platforms and a variety of materials of construction can be used for the pumps.
**Image shows Floating Prop Mixer combined with Unmanned Floating Pumping Platform



End of Section

Vaughan 3-way Valve

Foambuster

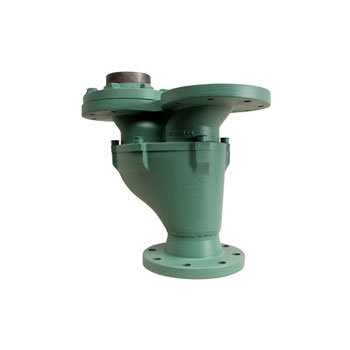

The 3-Way Valve is available in 4”, 6” and 8” sizes and is available as a stand-alone valve or as part of a Vaughan submersible or vertical wet-well Chopper Pump. The valve is a non-plug design using a rotatable CD-4MCu valve disc to allow discharge out of either of the top ports.

The Flow may even be split between the two ports. The valve cover provides dual discharge flanges; the valve body provides a single inlet flange. The valve disc may be manually rotated with a handle or may be driven by an optional electric motor powered, ball-screw actuator.



End of Section
